LAMP DESIGNATIONS¶
Front¶

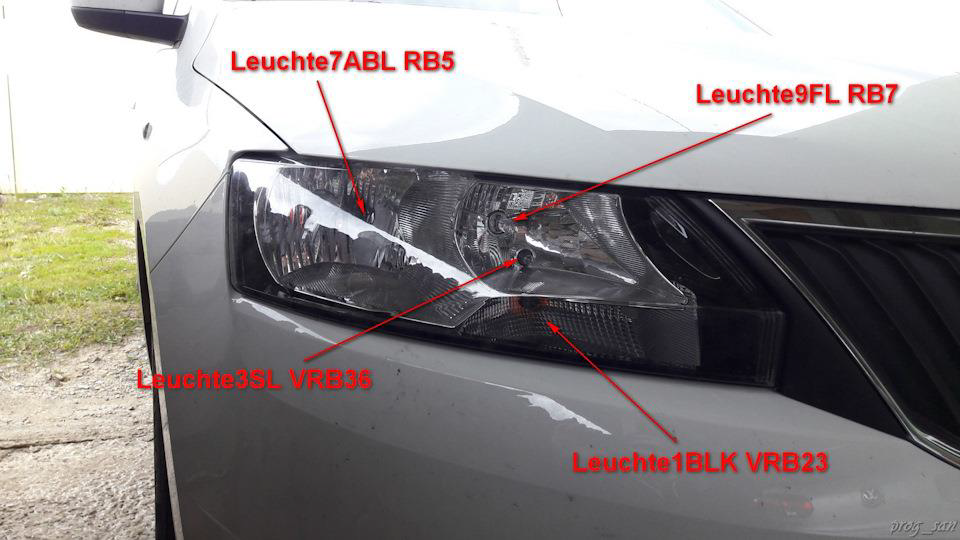

Leuchte9FL RB7 - far right
Leuchte7ABL RB5 – low beam right
Leuchte1BLK VRB23 - right front turn signal
Leuchte3SL VRB36 - front right marker

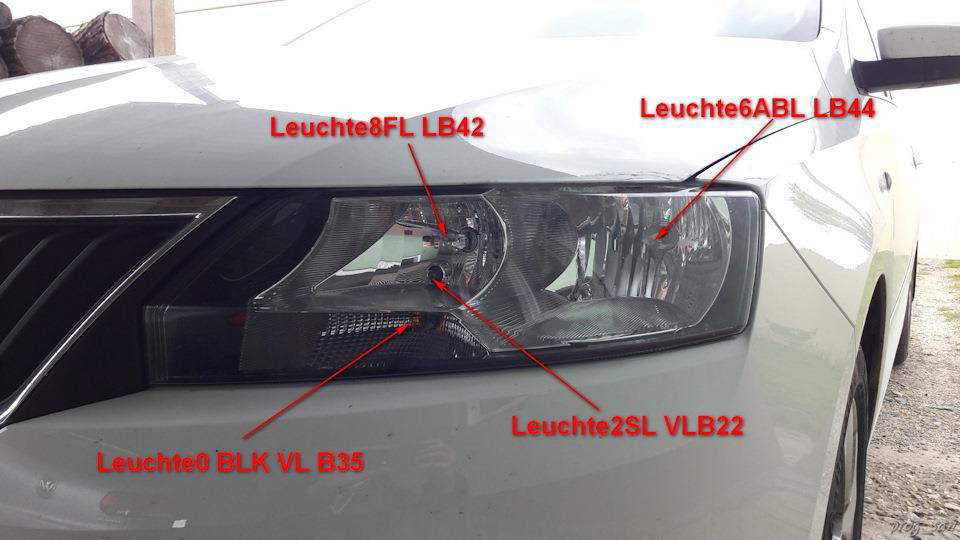

Leuchte8FL LB42 - far left
Leuchte6ABL LB44 – low beam left
Leuchte0 BLK VL B35 — left front turn signal
Leuchte2SL VLB22 - front left marker
Leuchte12NL LB40 - left fog light
Leuchte4TFL LB43 - left DRL
* Leuchte13NL RB3 - right fog light
* Leuchte5 TFL RB6 - right DRL
Rear¶
Leuchte20BR LA70 - left rear stop
Leuchte26NSL A65 — rear left PTF
Leuchte18BLK HLA71 — rear left turn signal
Leuchte23SL HLC7 - left rear marker
Leuchte28RFL C3 - reverse
Leuchte21BR RC8 - right rear stop
Leuchte19BLK HRC10 - rear right turn signal
Leuchte24SL HRA69 - right rear marker
Leuchte28RFL C3 - reverse
Leuchte22BR MC9 - additional stop
Leuchte25KZL HA60 — license plate illumination
Lateral¶
Leuchte16BLK SLC11 — left side turn signal
Leuchte17 BLK SR A72 — right side turn signal
Salon¶
Leuchte11WARNBLK TASTERC54 warning light
Leuchte15 SAFE LED C55 - security LED on the door
Leuchte27 KL58XS C67 – Terminal 58xs dimmer
Leuchte29 KL30G A69 – Klemme 30G (glove compartment light)
Leuchte30 INNENLICHT A68 – interior lamp
